HSR serie
Suitable for high pressure liquid transfer application

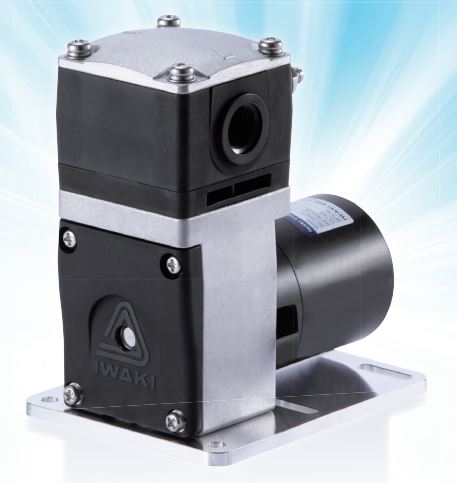

HSR-80 series are reciprocating diaphragm liquid pumps developed for build in equipment. Despite its compact design, it has a maximum rotation speed of 3000 min-1 and is capable of transferring liquid at high pressure.
The discharge capacity is up to 1200 ml/min, which covers wide capacity range.
Transfer liquid at high pressure
Max. rotation speed 3000min-1
Max. discharge pressure 0.6MPa
Capable of transferring liquid at high pressure
Wide capacity range
Rotation speed 3000min-1 : Capacity 1200mL/min
Rotation speed 2000min-1 : Capacity 800mL/min
Rotation speed 1000min-1 : Capacity 400mL/min
*Discharge pressure at 0.5MPa
Portection mechanism for abnormal pressure
Relief valve function can be available. Prevents damage to pumps and pipes due to abnormal rise in discharge pressure.
*Please install a protective function such as an external relief valve, when without relief valve function is selected.
